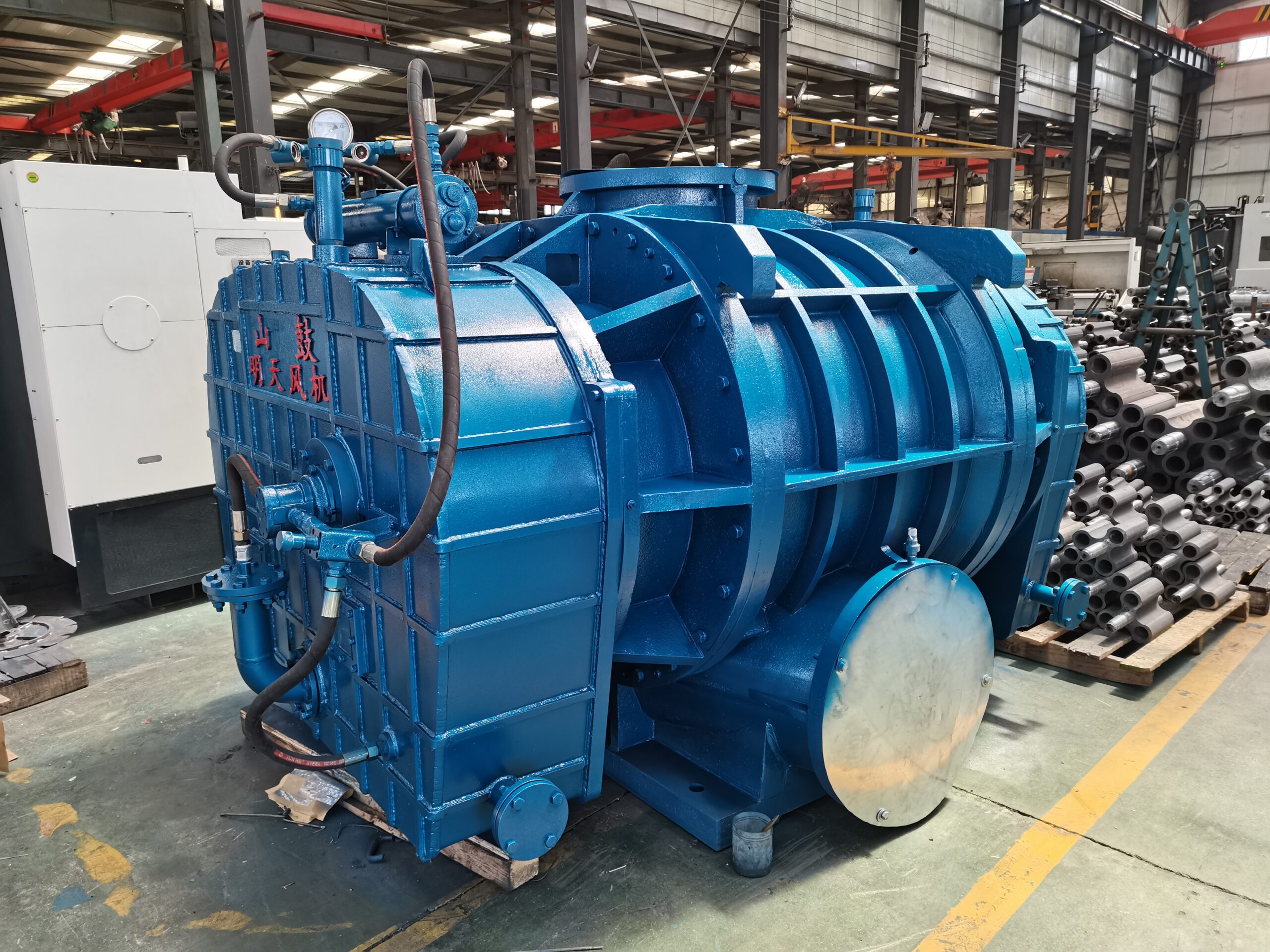

Heavy Capacity Industrial Roots Blower

1.Roots Blower Specification:

Model: MTRZ7-600, MTRZ7-750, MTRZ7-750, MTRZ7-800, MTRZ8-700, MTRZ8-800, MTRZ8-900

Flow Rate: 14515~44426 CFM

Pressure: 1.42~12.8 PSI

Motor Power: 132~1400KW

2.Roots Blower Features:

1) Adopts involute impeller, reliable and reasonable design, high overall efficiency.

2) Major components are machined using machining centers and CNC equipment. Gears are made of grade 5 precision lightweight alloy steel gears, ensuring high product precision and reliable operation.

3) The oil tank adopts a new structure such as an oil support plate, providing good heat dissipation. At a pressure of 49kPa, cooling water is not required, saving operating costs.

4)The casing and wall panels adopt a horizontal split structure for convenient maintenance.

3.Standard Scope of Supply:

Main unit, pressure gauge, coupling, anchor bolts.

4.Applications:

Vacuum Pressure swing adsorption (VPSA) oxygen production, desulfurization and denitrification, lime kilns, steel plant pneumatic conveying, industrial gas conveying, etc.
