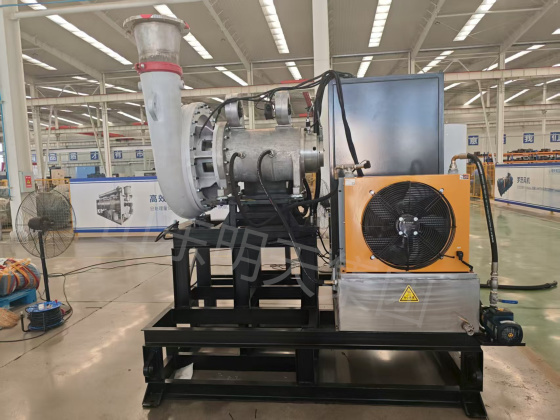

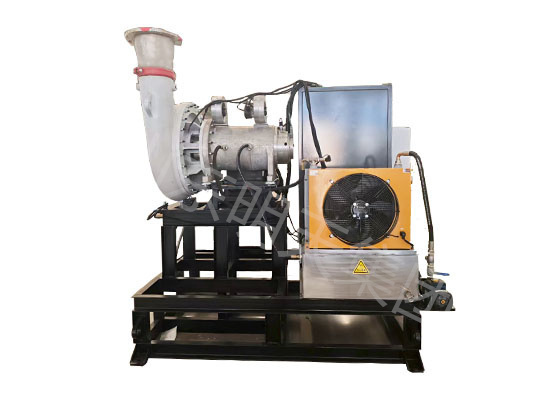

Maglev Turbine Vacuum Pump Working Principle:
The air from the vacuum suction point is acted upon by a high-speed rotating impeller in the vacuum pump, converting kinetic energy into gas pressure potential energy, creating a negative pressure vacuum. After passing through the volute casing, it is discharged as high-temperature air.

Maglev Turbine Vacuum Pump Performance Characteristics:

Energy Efficient
Adopts an active magnetic levitation bearing system, resulting in no wear, lubrication, or maintenance requirements. High-speed permanent magnet motor directly drives the three-dimensional flow impeller, eliminating transmission losses. The permanent magnet high-speed synchronous motor has an efficiency of up to 98%. It saves more than 40% energy compared to water ring vacuum pumps, meer as 20% compared to multi-stage centrifugal vacuum pumps, and more than 15% compared to single-stage high-speed vacuum pumps. The high-speed rotating three-dimensional flow impeller converts kinetic energy into gas pressure potential energy, creating a negative pressure vacuum without the need for working fluid.

Quiet and Low Noise
Operating noise is below 85 dB(A). Adopts self-balancing technology; magnetic levitation bearings have one order of magnitude less vibration than traditional bearings. Safe and frictionless operation, no gear meshing noise. Adopts active vibration reduction design, resulting in low machine vibration.

Intelligent and Convenient
Uses a high-performance frequency converter to control the rotational speed, with multiple control modes available. The intelligent control system monitors the vacuum pump’s operating status in real time, and an integrated anti-surge system ensures safe and stable operation. Equipped with auxiliary bearings and a power-off self-generation system to prevent equipment damage due to unexpected power outages. Features anti-surge and overload protection functions.

Easy Installation and Maintenance-Free
Adopts an integrated compact design, requiring minimal space and simple layout. Easy installation with one-button start and stop. Requires no mechanical maintenance during daily operation, only cleaning of the filter plate.

Specifications of maglev turbine vacuum pump:

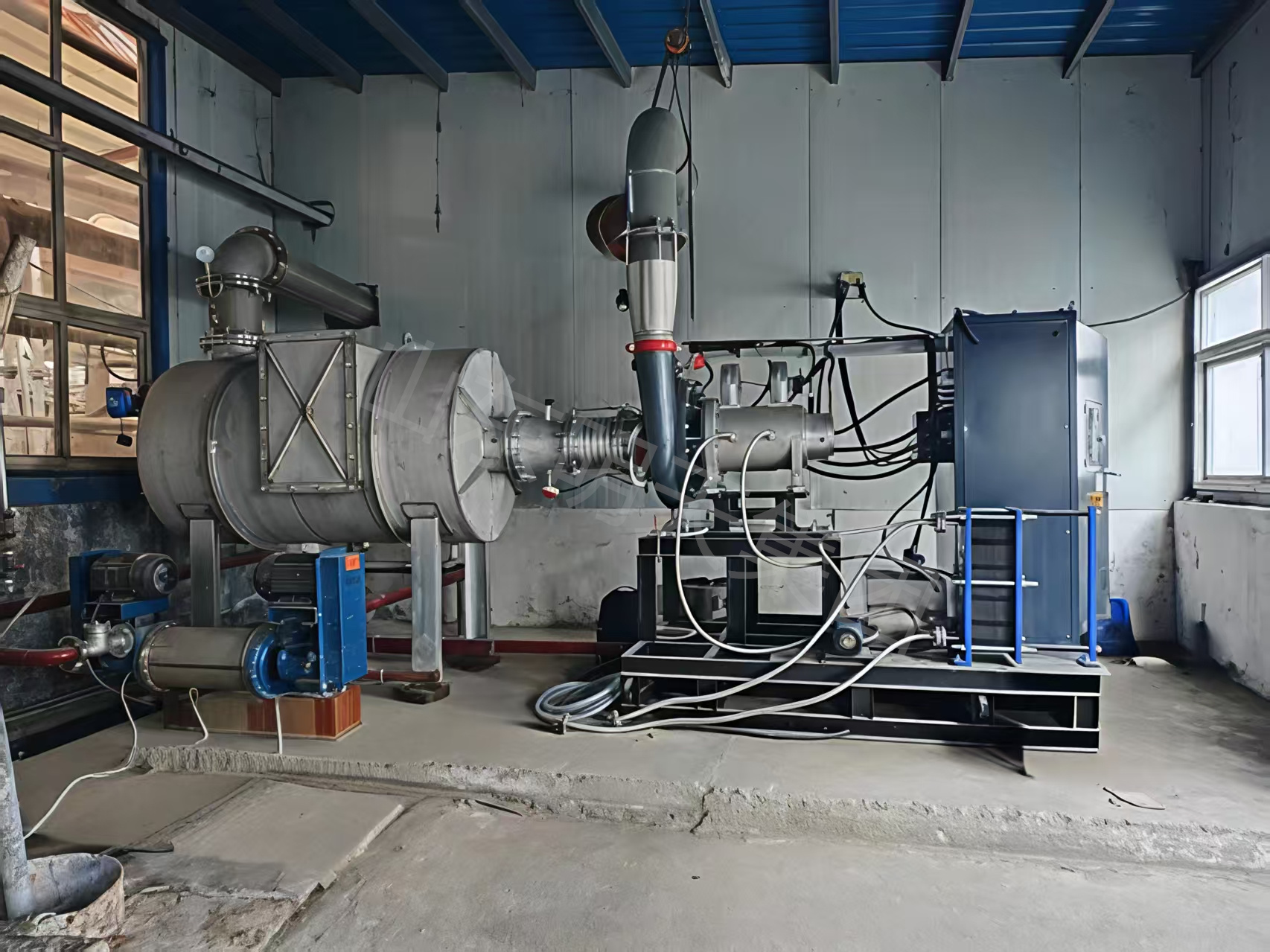

Project Site:

Maglev Turbine Vacuum Pump Working Principle:
The air from the vacuum suction point is acted upon by a high-speed rotating impeller in the vacuum pump, converting kinetic energy into gas pressure potential energy, creating a negative pressure vacuum. After passing through the volute casing, it is discharged as high-temperature air.

Features: 1.Energy-Efficient and High-Performance;2.Quiet and Low Noise;3.Intelligent and Convenient;4.Intelligent and Convenient
